 CHOKE COIL

KLC0630V(1)

Specification is based on the order.

WIRE0.3 ~ 1.8 m/m

CORE2 × 10 ~ 10 × 80 (FERRITE)

INDUCTANCE1 ~ 20

TUBE(or EPOXY)

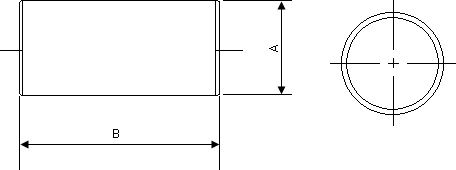

Dimension(mm)
규 격 A B
R 2×10 2.00±0.10 10.0±0.30
R 3x10 3.00±0.20 8.00±0.20
R 3x12 3.00±0.20 12.0±0.30
R 3x15 3.00±0.20 15.0±0.30
R 3x17 3.00±0.20 17.0±0.30
R 3x20 3.00±0.20 20.0±0.30
R 4x8 4.00±0.20 8.00±0.20
R 4x12 4.00±0.20 12.0±0.30
R 4x15 4.00±0.20 15.0±0.30
R 4x17.5 4.00±0.20 17.5±0.50
R 4x20 4.00±0.20 20.0±0.50
R 4x25 4.00±0.20 25.0±0.50
R 5x15 5.00±0.20 15.0±0.30
R 5x20 5.00±0.20 20.0±0.30
R 5x25 5.00±0.20 25.0±0.50
R 5x30 5.00±0.20 30.0±0.50
R 6x15 6.00±0.20 15.0±0.50
R 6x20 6.00±0.20 20.0±0.50
R 6x25 6.00±0.20 25.0±0.50
R 6x30 6.00±0.20 30.0±0.50
R 6x35 6.00±0.20 35.0±0.50
R 7.8x50 7.80±0.30 50.0±0.50
R 8x20 8.00±0.30 20.0±0.50
R 8x30 8.00±0.30 30.0±0.50
R 8x40 8.00±0.30 40.0±0.50
R 10x60 10.00±0.50 60.0±0.70
R 10x80 10.00±0.50 80.0±0.70
