 CHOKE COIL

KLC0317AH

Specification is based on the order.

WIRE0.3 ~ 0.8 m/m

CORE3 × 10 ~ 6 × 35 (FERRITE)

INDUCTANCE2 ~ 20

TUBE(or EPOXY)

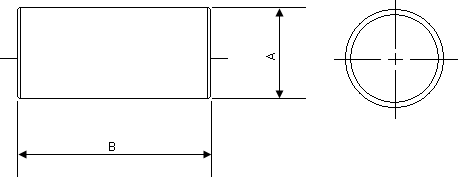

Dimension(mm)
규 격 A B
R 3x10 3.00±0.20 8.00±0.20
R 3x12 3.00±0.20 12.0±0.30
R 3x15 3.00±0.20 15.0±0.30
R 3x17 3.00±0.20 17.0±0.30
R 3x20 3.00±0.20 20.0±0.30
R 4x8 4.00±0.20 8.00±0.20
R 4x12 4.00±0.20 12.0±0.30
R 4x15 4.00±0.20 15.0±0.30
R 4x17.5 4.00±0.20 17.5±0.50
R 4x20 4.00±0.20 20.0±0.50
R 4x25 4.00±0.20 25.0±0.50
R 5x15 5.00±0.20 15.0±0.30
R 5x20 5.00±0.20 20.0±0.30
R 5x25 5.00±0.20 25.0±0.50
R 5x30 5.00±0.20 30.0±0.50
R 6x15 6.00±0.20 15.0±0.50
R 6x20 6.00±0.20 20.0±0.50
R 6x25 6.00±0.20 25.0±0.50
R 6x30 6.00±0.20 30.0±0.50
R 6x35 6.00±0.20 35.0±0.50
