CHOKE COIL
KLC0310H
Specification is based on the order.
WIRE0.10 ~ 0.8 m/m
CORE2 × 10 ~ 6 × 20 (FERRITE)
INDUCTANCE2 ~ 20
TUBE (or EPOXY)

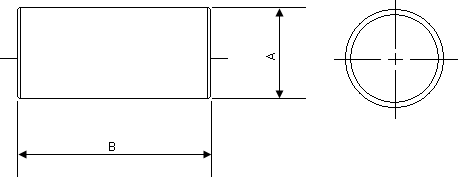

| 규 격 | A | B |
|---|---|---|
| R 2×10 | 2.00±0.10 | 10.0±0.30 |
| R 3×8 | 3.00±0.20 | 8.00±0.20 |
| R 3x10 | 3.00±0.20 | 8.00±0.20 |
| R 3x12 | 3.00±0.10 | 12.0±0.30 |
| R 3.5x25 | 3.50±0.10 | 25.0±0.50 |
| R 4x10 | 4.00±0.20 | 10.0±0.30 |
| R 4x15 | 4.00±0.20 | 15.0±0.20 |
| R 4x20 | 4.00±0.20 | 20.0±0.40 |
| R 5x15 | 5.00±0.20 | 15.0±0.30 |
| R 5x20 | 5.00±0.20 | 20.0±0.30 |
| R 5x25 | 5.00±0.20 | 25.0±0.30 |
| R 6x20 | 6.00±0.20 | 20.0±0.40 |
-
