 SMD CHIP AIR COIL

KLS1002

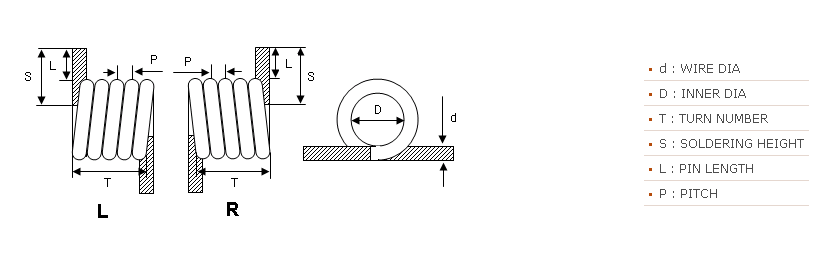

Specification is based on the order.

WIRE0.2 ~ 1.2 mm

TURNS1 ~ 35T

INNER DIA0.5 ~ 15

Inductance range(nH) WIRE(Ø) INNER DIA TURNS PACKING REEL Ordering code
8.5 0.26 1.0 3T BULK 0.26*1.0*3T
21.5 0.26 1.0 6T BULK 0.26*1.0*6T
11.0 0.26 1.2 3T BULK 0.26*1.2*3T
2.1 0.3 0.7 2T BULK 0.3*0.7*2T
3.6 0.3 0.7 3T BULK 0.3*0.7*3T
5.2 0.3 0.7 4T BULK 0.3*0.7*4T
4.0 0.3 0.8 2T BULK 0.3*0.8*2T
7.2 0.3 0.8 3T BULK 0.3*0.8*3T
9.2 0.3 0.8 4T BULK 0.3*0.8*4T
4.1 0.3 0.9 2T BULK 0.3*0.9*2T
7.5 0.3 0.9 3T BULK 0.3*0.9*3T
10.5 0.3 0.9 4T BULK 0.3*0.9*4T
6.3 0.3 1.0 2T BULK 0.3*1.0*2T
9.0 0.3 1.0 3T BULK 0.3*1.0*3T
12.0 0.3 1.0 4T BULK 0.3*1.0*4T
15.0 0.3 1.0 5T BULK 0.3*1.0*5T
9.5 0.3 1.1 3T BULK 0.3*1.1*3T
13.5 0.3 1.1 4T BULK 0.3*1.1*4T
18.5 0.3 1.1 5T BULK 0.3*1.1*5T
23.2 0.3 1.1 6T BULK 0.3*1.1*6T
10.5 0.3 1.2 3T BULK 0.3*1.2*3T
15.5 0.3 1.2 4T BULK 0.3*1.2*4T
21.0 0.3 1.2 5T BULK 0.3*1.2*5T
25.0 0.3 1.2 6T BULK 0.3*1.2*6T
12.0 0.3 1.3 3T BULK 0.3*1.3*3T
18.0 0.3 1.3 4T BULK 0.3*1.3*4T
22.0 0.3 1.3 5T BULK 0.3*1.3*5T
28.0 0.3 1.3 6T BULK 0.3*1.3*6T
13.6 0.3 1.4 3T BULK 0.3*1.4*3T
18.0 0.3 1.4 4T BULK 0.3*1.4*4T
25.0 0.3 1.4 5T BULK 0.3*1.4*5T
32.0 0.3 1.4 6T BULK 0.3*1.4*6T
39.0 0.3 1.4 7T BULK 0.3*1.4*7T
27.0 0.3 1.5 5T BULK 0.3*1.5*5T
15.0 0.3 1.6 3T BULK 0.3*1.6*3T
29.0 0.3 1.6 5T BULK 0.3*1.6*5T
44.5 0.3 1.6 7T BULK 0.3*1.6*7T
34.7 0.3 1.7 5T BULK 0.3*1.7*5T
44.9 0.3 1.7 6T BULK 0.3*1.7*6T
50.0 0.3 1.7 7T BULK 0.3*1.7*7T
60.0 0.3 1.8 8T BULK 0.3*1.7*8T
75.6 0.3 1.9 9T BULK 0.3*1.7*9T
86.0 0.3 1.7 10T BULK 0.3*1.7*10T
94.8 0.3 1.7 11T BULK 0.3*1.7*11T
105.0 0.3 1.7 13T BULK 0.3*1.7*13T
35.0 0.3 1.8 5T BULK 0.3*1.8*5T
47.0 0.3 1.8 6T BULK 0.3*1.8*6T
54.5 0.3 1.8 7T BULK 0.3*1.8*7T
64.5 0.3 1.8 8T BULK 0.3*1.8*8T
74.7 0.3 1.8 9T BULK 0.3*1.8*9T
85.0 0.3 1.8 10T BULK 0.3*1.8*10T
95.3 0.3 1.8 11T BULK 0.3*1.8*11T
105.8 0.3 1.8 12T BULK 0.3*1.8*12T
48.0 0.3 1.9 6T BULK 0.3*1.9*6T
50.0 0.3 1.9 7T BULK 0.3*1.9*7T
71.0 0.3 1.9 8T BULK 0.3*1.9*8T
94.0 0.3 1.9 10T BULK 0.3*1.9*10T
71.0 0.3 2.1 7T BULK 0.3*2.1*7T
84.3 0.3 2.1 8T BULK 0.3*2.1*8T
111.7 0.3 2.1 10T BULK 0.3*2.1*10T
121.3 0.3 2.2 10T BULK 0.3*2.2*10T
1.5 0.35 0.6 2T BULK 0.35*0.6*2T
1.9 0.35 0.7 2T BULK 0.35*0.7*2T
2.4 0.35 0.8 2T BULK 0.35*0.8*2T
5.8 0.35 0.8 4T BULK 0.35*0.8*4T
7.0 0.35 1.0 3T BULK 0.35*1.0*3T
13.6 0.35 1.3 4T BULK 0.35*1.3*4T
17.0 0.35 1.4 4T BULK 0.35*1.4*4T
29.0 0.35 1.4 6T BULK 0.35*1.4*6T
21.0 0.35 1.6 4T BULK 0.35*1.6*4T
0.4 0.35 1.6 6T BULK 0.35*1.6*6T
44.0 0.35 1.6 7T BULK 0.35*1.6*7T
54.0 0.35 1.6 8T BULK 0.35*1.6*8T
65.0 0.35 1.6 9T BULK 0.35*1.6*9T
71.0 0.35 1.6 10T BULK 0.35*1.6*10T
40.0 0.35 2.0 5T BULK 0.35*2.0*5T
5.2 0.4 0.9 2T BULK 0.4*0.9*2T
7.1 0.4 0.9 3T BULK 0.4*0.9*3T
10.0 0.4 0.9 4T BULK 0.4*0.9*4T
5.6 0.4 1.0 2T BULK 0.4*1.0*2T
5.9 0.4 1.1 2T BULK 0.4*1.1*2T
9.2 0.4 1.1 3T BULK 0.4*1.1*3T
10.0 0.4 1.2 3T BULK 0.4*1.2*3T
20.5 0.4 1.3 5T BULK 0.4*1.3*5T
13.0 0.4 1.4 3T BULK 0.4*1.4*3T
29.6 0.4 1.5 6T BULK 0.4*1.45*6T
19.6 0.4 1.5 4T BULK 0.4*1.5*4T
24.0 0.4 1.5 5T BULK 0.4*1.5*5T
31.0 0.4 1.5 6T BULK 0.4*1.5*6T
38.3 0.4 1.5 7T BULK 0.4*1.5*7T
21.2 0.4 1.6 4T BULK 0.4*1.6*4T
80.2 0.4 2.0 9T BULK 0.4*2.0*9T
172.0 0.4 2.4 13T BULK 0.4*2.4*13T
186.3 0.4 2.4 14T BULK 0.4*2.4*14T
198.6 0.4 2.4 15T BULK 0.4*2.4*15T
201.0 0.4 3.0 11T BULK 0.4*3.0*11T
6.6 0.45 1.4 2T BULK 0.45*1.4*2T
11.0 0.45 1.4 3T BULK 0.45*1.4*3T
15.0 0.45 1.4 4T BULK 0.45*1.4*4T
26.9 0.45 1.4 6T BULK 0.45*1.4*6T
34.4 0.5 2.0 5T BULK 0.5*2.0*5T
75.6 0.5 2.0 11T BULK 0.5*2.0*11T
90.0 0.5 2.5 9T BULK 0.5*2.5*9T
228.8 0.5 3.0 15T BULK 0.5*3.0*15T
387.0 0.5 4.0 15T BULK 0.5*4.0*15T
32.0 0.6 1.1 14T 1.5K 0.6*1.1*14T
